لوحة شحن و تفريغ و حماية لبطارية ليثيوم واحدة بقدرة 1 امبير | USB-C | TP4056
10.0 ₪
متوفر في المخزون
- Input Supply Voltage: 4.5~6.0 V
- Constant Charge Current: 1 A

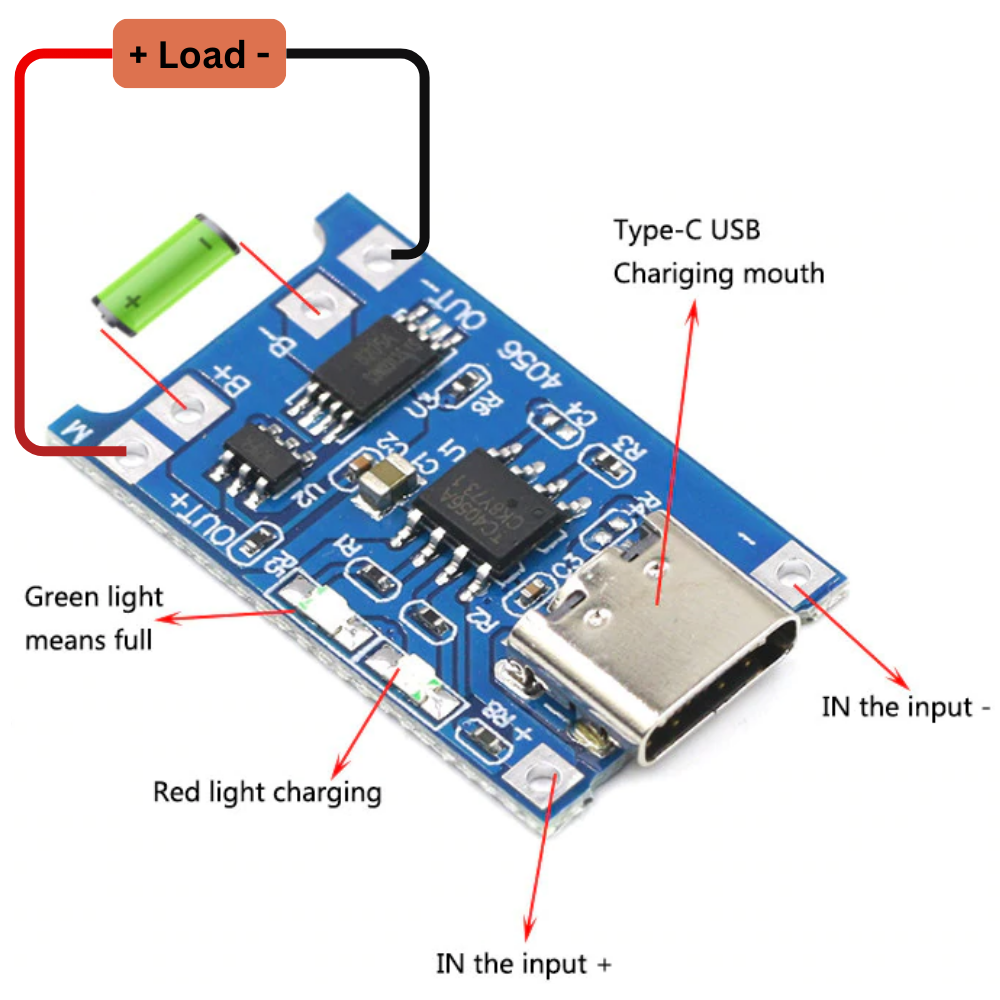

- Configurable with Rprog resistor (R3, see diagrams and TP4056 datasheet)
- Charge Complete (Float) Voltage: 4.2 V ±1.5%
- Overcharge Protection
- Overcharge Detection Voltage: 4.3 V ±50 mV
- Overcharge Release Voltage: 4.1 V ±50 mV
- Over-Discharge Protection
- Over-Discharge Detection Voltage: 2.4 V ±100 mV
- Over-Discharge Release Voltage: 3.0 V ±100 mV
- Overcurrent Protection
- Overcurrent Protection Threshold: 3 A
- Overcurrent Cutout Delay: 10~20 ms
- Short-Circuit Cutout Delay: 5~50 µs
- Trickle Charge (Battery Reconditioning)
- Trickle Charge Threshold Voltage: 2.9 V ±0.1 V
- Trickle Charge Current: 130 mA ±10 mA
